Produktinformation DIN 28011, HII/P265GH, Klöpperböden, V-Kante aussen

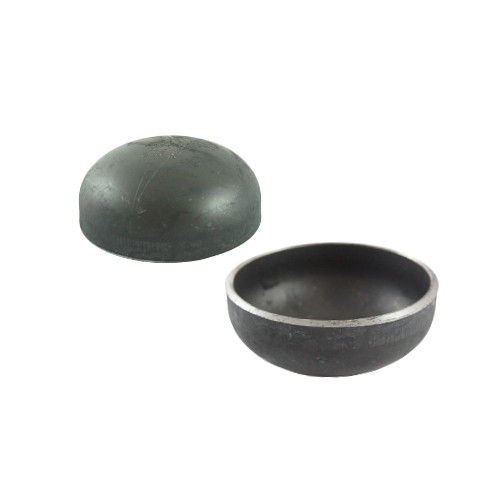

Gewölbte Böden - Klöpperform aus schwarzem Stahl
Norm: 28011
Art: V-Kante außen
Material: HII / ST 35.8I / P265GH
Norm: 28011
Art: V-Kante außen
Material: HII / ST 35.8I / P265GH
| DN | d | s | h1 | Gewicht |
| 15 | 21,3 | 3,0 | 8,0 | 0,06 |
| 20 | 26,9 | 3,0 | 11,0 | 0,06 |
| 25 | 31,8 | 3,0 | 11,0 | 0,07 |
| 25 | 33,7 | 3,0 | 11,0 | 0,07 |
| 32 | 42,4 | 3,0 | 11,0 | 0,08 |
| 32 | 44,5 | 3,0 | 11,0 | 0,09 |
| 40 | 48,3 | 3,0 | 11,0 | 0,11 |
| 40 | 57,0 | 3,0 | 11,0 | 0,15 |
| 50 | 60,3 | 3,0 | 11,0 | 0,17 |
| 50 | 63,5 | 3,0 | 11,0 | 0,18 |
| 65 | 70,0 | 3,0 | 11,0 | 0,21 |
| 65 | 76,1 | 3,0 | 11,0 | 0,25 |
| 80 | 88,9 | 3,0 | 20,0 | 0,32 |
| 100 | 101,6 | 4,0 | 20,0 | 0,52 |
| 100 | 108,0 | 4,0 | 20,0 | 0,61 |
| 100 | 114,3 | 4,0 | 20,0 | 0,66 |
| 125 | 133,0 | 4,0 | 20,0 | 0,84 |
| 125 | 139,7 | 4,0 | 20,0 | 0,96 |
| 150 | 159.0 | 5.0 | 20.0 | 1,40 |
| 150 | 168.3 | 5.0 | 20.0 | 1,70 |
| 175 | 193,7 | 5,0 | 20,0 | 2,20 |
| 200 | 219.1 | 6.0 | 25.0 | 3,30 |
| 250 | 244.5 | 6.0 | 25.0 | 4.00 |
| 250 | 273.0 | 6.0 | 25.0 | 4,80 |
| 300 | 323.9 | 7.0 | 25.0 | 7,60 |
| 350 | 355.6 | 8.0 | 30.0 | 11.00 |
| 400 | 406.4 | 8.0 | 30.0 | 14,10 |
| 450 | 457.0 | 8.0 | 30.0 | 17.40 |
| 500 | 508.0 | 10.0 | 35.0 | 26.30 |
| 600 | 610.0 | 10.0 | 35.0 | 36.90 |
| 700 | 711.0 | 8,0 | 35.0 | 39.50 |
